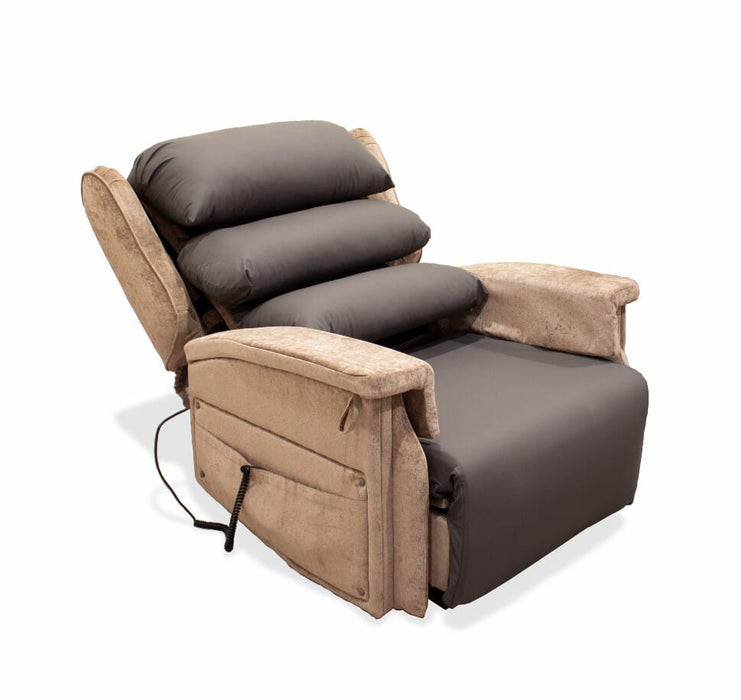

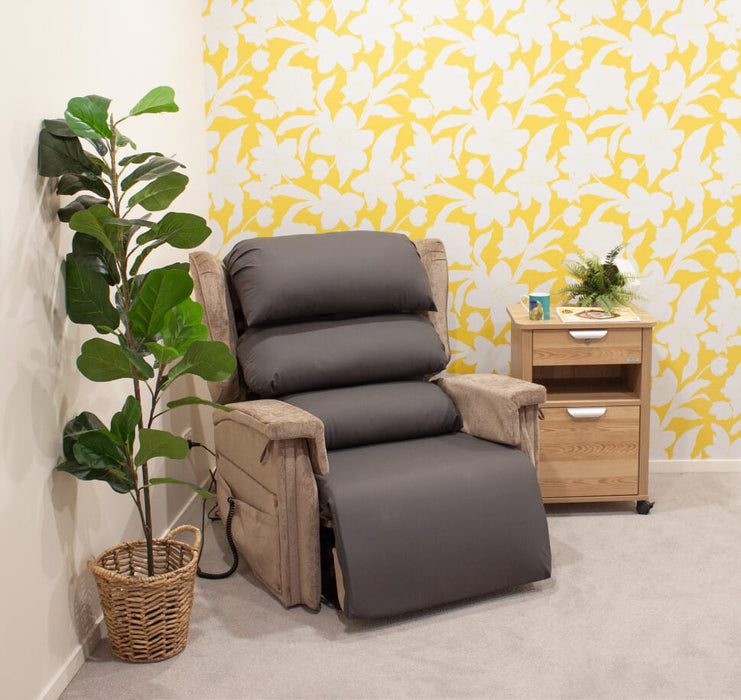

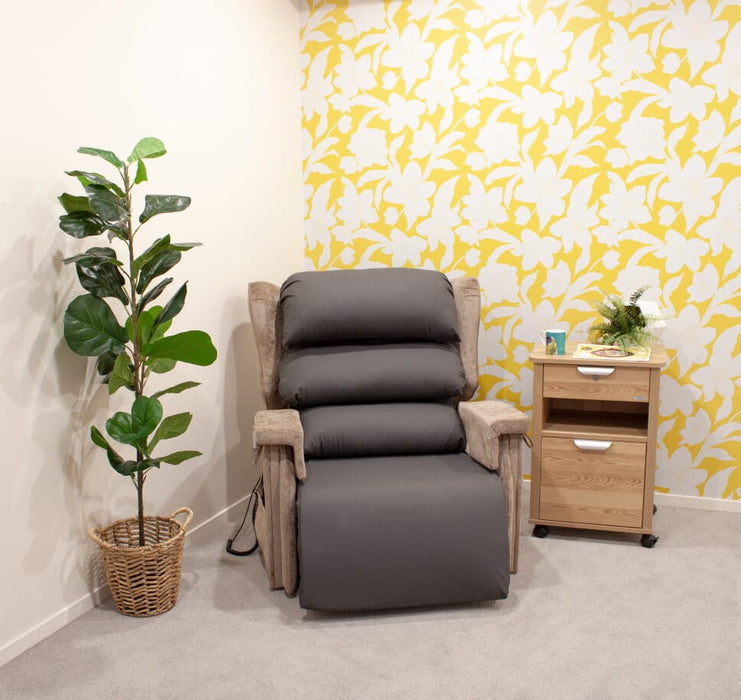

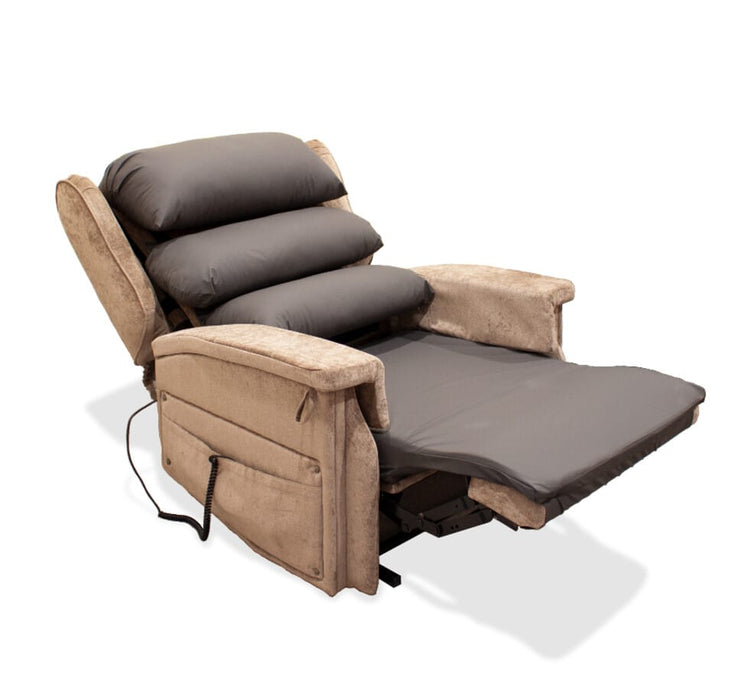

Cubro Configura Bariatric Tilt-in-Space Chair NZ | 254kg | Rise & Recline

Change position without sliding or shearing

Tilt-in-space tips the seat and back together while keeping the hip and knee angle the same. That shifts pressure without dragging the skin. Separate motors for the leg rest, backrest and tilt let each be set on its own.

• Independent leg rest, backrest and tilt-in-space motors
• Powered rise function to help with transfers
• Integrated memory foam seat cushion, swappable for a pressure care cushion
• Adjustable backrest pillows for postural support
• Sides and armrests shaped for hoist access
• Leg rest rated to 127kg
• Heavy duty castors with directional lock
• Backup battery for power cuts
• All contact areas can be removed for cleaning or replacement

Specifications

Codes: 3171-1 (406mm / 16" seat height), 3172-1 (457mm / 18" seat height)
Safe working load: 254kg
Seat width: 609, 660 or 711mm
Seat depth: 508mm standard or 558mm (can be customised to 457mm)
Seat height: 406mm (3171-1) or 457mm (3172-1)
Armrest height: 200mm
Leg rest weight capacity: 127kg
Motors: Independent leg rest, backrest and tilt-in-space
Braking: Heavy duty castors with directional lock
Backup battery: Yes

Cubro does not publish overall dimensions or product weight for this model. Contact us and we will confirm them before you commit.

Accessories

Configura chair lateral supports (3160)
Configura bariatric depth adjustment kit, 50mm (3175)

Warranty

Warranty terms are confirmed on your written quote. Your Consumer Guarantees Act rights apply on top.

Delivery

Delivery details and timeframe are confirmed on your written quote.

What is tilt-in-space and why does it matter?
Tilt-in-space tips the seat and back together while keeping the hip and knee angle fixed. That redistributes pressure without dragging the skin across the seat, which is what causes shear injuries.

How is this different from the Configura Bariatric Rise & Recline?
Both are rated to 254kg with 609, 660 or 711mm seats. The Tilt-in-Space adds a third motor for tilt and has heavy duty castors with directional lock. The Rise & Recline has two motors (leg rest and backrest) and no tilt.

What is the difference between codes 3171-1 and 3172-1?
Seat height only. 3171-1 has a 406mm (16") seat height and 3172-1 has a 457mm (18") seat height.

Which seat width do I need?
Choose from 609, 660 or 711mm. Your occupational therapist will normally measure and specify this. If you are ordering without an OT, send us the seated hip width and we will advise.

How big is the chair overall?
Cubro does not publish overall dimensions for this model. If space or doorway width is a concern, contact us and we will confirm the measurements before you commit.

Can I use my own pressure cushion?
Yes. The chair comes with an integrated memory foam seat cushion that can be swapped for the Comfort air-cell cushion or another pressure care cushion. If your OT has prescribed a particular cushion, tell us and we will include it on the quote.

What happens in a power cut?
A backup battery is fitted, so the chair can still be operated if the power goes out.

What accessories are available?
Lateral supports (code 3160) and the bariatric 50mm seat depth adjustment kit (code 3175). Both are quoted and itemised separately.

Can I get funding for this chair?
Funding depends on the person's circumstances and is usually arranged through an occupational therapist. We are a registered vendor with Enable New Zealand, ACC and MSD/Work and Income. Ask your OT to contact us and we will provide a formal written quote addressed to the funder, with the chair and each accessory itemised.

How is it delivered?
Delivery details and timeframe are confirmed on your written quote. The chair is heavy, so please plan for two people to position it.

Does Mobility Plus have a physical store?
No. We are online only, based in Putaruru, South Waikato, and we deliver nationwide.
