Cubro Configura Bariatric Rise & Recline Chair NZ | 254kg | Dual Motor

Sit, recline and stand with less effort

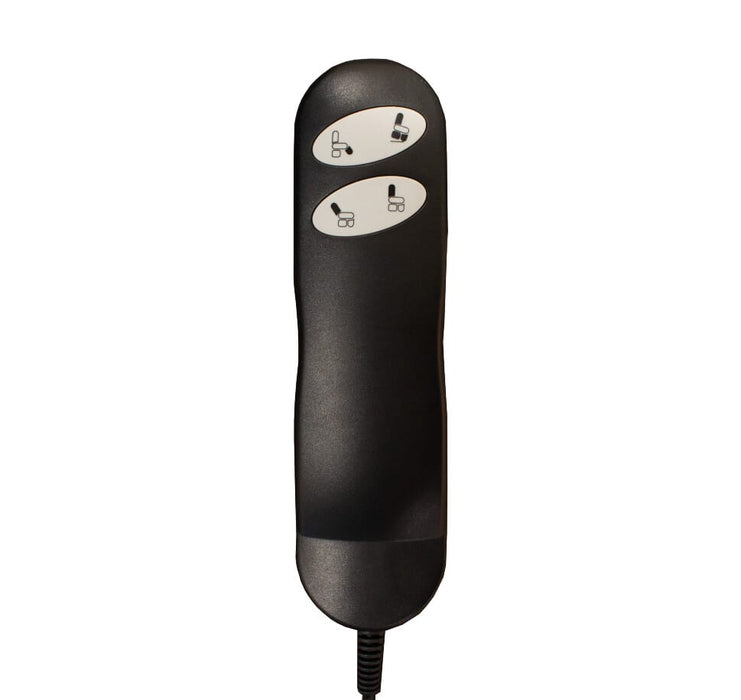

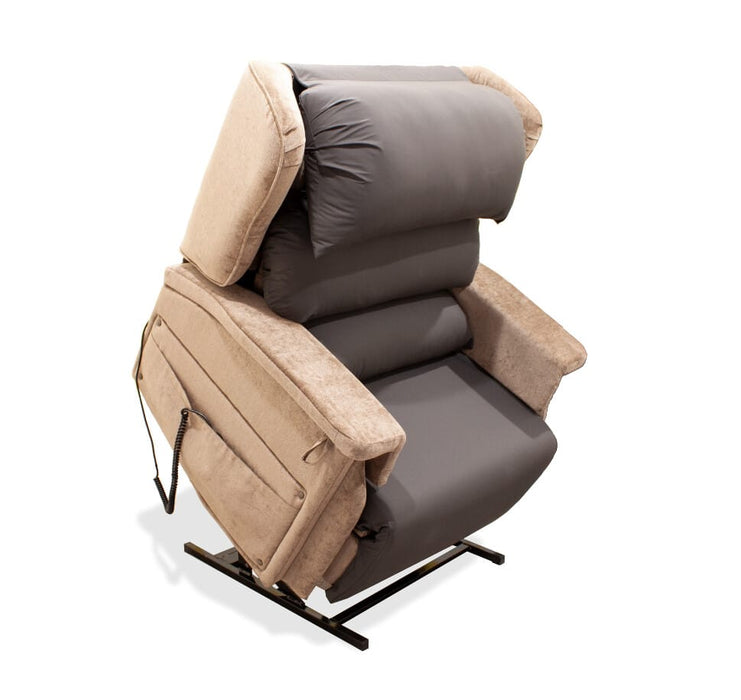

Press the handset and the chair lifts you towards standing, so there is less bend at the knee and less strain on a carer. The leg rest and backrest each have their own motor, so the legs can be raised without tipping back, or the back reclined without lifting the legs.

• Powered rise function to help with standing and transfers
• Rise angle 30° as standard, adjustable to a medium rise of 20°
• Dual motor: independent leg rest and backrest
• Integrated memory foam seat cushion, swappable for a pressure care cushion
• Adjustable backrest pillows for postural support
• Seat depth and the width between the armrests can be adjusted
• Sides and armrests shaped for hoist access
• Leg rest rated to 127kg
• Backup battery for power cuts
• 4-way stretch, vapour-permeable fabric on the seat, backrest, leg rest and armrests
• All contact areas can be removed for cleaning or replacement

Specifications

Codes: 3164 (406mm / 16" seat height), 3165 (457mm / 18" seat height)
Safe working load: 254kg
Seat width: 609, 660 or 711mm
Seat depth: 508mm standard or 558mm (can be customised to 457mm)
Seat height: 406mm (3164) or 457mm (3165)
Armrest height: 200mm
Overall, seated: W 1050mm × D 800mm × H 1150mm
Overall, in rise: D 1000mm × H 1450mm
Reclining length: 1700mm
Rise angle: 30° standard, or 20° medium rise
Leg rest weight capacity: 127kg
Motors: Dual (leg rest and backrest)
Backup battery: Yes
Product weight: 92kg

Accessories

Configura chair lateral supports (3160)
Configura bariatric depth adjustment kit, 50mm (3175)

Warranty

Warranty terms are confirmed on your written quote. Your Consumer Guarantees Act rights apply on top.

Delivery

Delivery details and timeframe are confirmed on your written quote.

How is this different from the Configura Comfort?
The Comfort is rated to 160kg with seat widths from 457 to 559mm. The Bariatric Rise & Recline takes up to 254kg with seat widths of 609, 660 or 711mm.

Does this model tilt in space?
No. This model has two motors, one for the leg rest and one for the backrest. If tilt-in-space is needed, look at the Configura Bariatric Tilt-in-Space Chair, which adds a third motor for tilt.

What is the difference between codes 3164 and 3165?
Seat height only. 3164 has a 406mm (16") seat height and 3165 has a 457mm (18") seat height. Everything else is the same.

Which seat width do I need?
Choose from 609, 660 or 711mm. Your occupational therapist will normally measure and specify this. If you are ordering without an OT, send us the seated hip width and we will advise.

Can I use my own pressure cushion?
Yes. The chair comes with an integrated memory foam seat cushion that can be swapped for the Comfort air-cell cushion or another pressure care cushion. If your OT has prescribed a particular cushion, tell us and we will include it on the quote.

Will it fit in the room?
Seated it is 1050mm wide, 800mm deep and 1150mm high. In the rise position it needs 1000mm of depth and 1450mm of height, and fully reclined it is 1700mm long. Allow clearance behind and in front.

What happens in a power cut?
A backup battery is fitted, so the chair can still be operated if the power goes out.

What accessories are available?
Lateral supports (code 3160) and the bariatric 50mm seat depth adjustment kit (code 3175). Both are quoted and itemised separately.

Can I get funding for this chair?
Funding depends on the person's circumstances and is usually arranged through an occupational therapist. We are a registered vendor with Enable New Zealand, ACC and MSD/Work and Income. Ask your OT to contact us and we will provide a formal written quote addressed to the funder, with the chair and each accessory itemised.

How is it delivered?
Delivery details and timeframe are confirmed on your written quote. The chair is heavy, so please plan for two people to position it.

Does Mobility Plus have a physical store?
No. We are online only, based in Putaruru, South Waikato, and we deliver nationwide.
